How to Calculate and Solve for Distance from Origin to Water Divide in case of Infiltration | Flow Lines
Last Updated on April 8, 2024
The image above represents the distance from origin to water divide in case of infiltration. To calculate the distance from origin to water divide in case of infiltration, five essential parameters are needed and these parameters are Head at the Origin (h1), Head at L (h2), Hydraulic Compressibility (K), Flow Length and Recharge Rate (w).
d = L/2 – K/w(h1² – h2² / 2L)
Where:
d = Distance from Origin to Water Divide in case of Infiltration
h1 = Head at the Origin
h2 = Head at L
K = Hydraulic Compressibility
L = Flow Length
w = Recharge Rate
Let’s solve an example;
Find the distance from origin to water divide in case of infiltration when the head at the origin is 21, head at L is 11, hydraulic compressibility is 32, flow length is 10 and recharge rate is 18.
This implies that;
h1 = Head at the Origin = 21
h2 = Head at L = 11
K = Hydraulic Compressibility = 32
L = Flow Length = 10
w = Recharge Rate = 18
d = L/2 – K/w(h1² – h2² / 2L)
d = 10/2 – 32/18(21² – 11² / 2(10))
That is, d = 5 – 1.77(441 – 121 / 20)
d = 5 – 1.77(320 / 20)
d = 5 – 1.77(16)
So, d = 5 – 28.44
d = -23.44
Therefore, the distance from origin to water divide in case of infiltration is – 23.44.
Read more: How to Calculate and Solve for Head at x in case of No Infiltration or Evaporation | Flow Lines
How to Calculate and Solve for Distance from Origin to Water Divide in case of Infiltration with Nickzom Calculator
Nickzom Calculator – The Calculator Encyclopedia is capable of calculating the distance from origin to water divide in case of infiltration.
To get the answer and workings of the distance from origin to water divide in case of infiltration using the Nickzom Calculator – The Calculator Encyclopedia. First, you need to obtain the app.
You can get this app via any of these means:
Web – https://www.nickzom.org/calculator-plus
To get access to the professional version via web, you need to register and subscribe for NGN 2,000 per annum to have utter access to all functionalities.
You can also try the demo version via https://www.nickzom.org/calculator
Android (Paid) – https://play.google.com/store/apps/details?id=org.nickzom.nickzomcalculator
Android (Free) – https://play.google.com/store/apps/details?id=com.nickzom.nickzomcalculator
Apple (Paid) – https://itunes.apple.com/us/app/nickzom-calculator/id1331162702?mt=8
Once, you have obtained the calculator encyclopedia app, proceed to the Calculator Map, then click on Geology under Add-on.

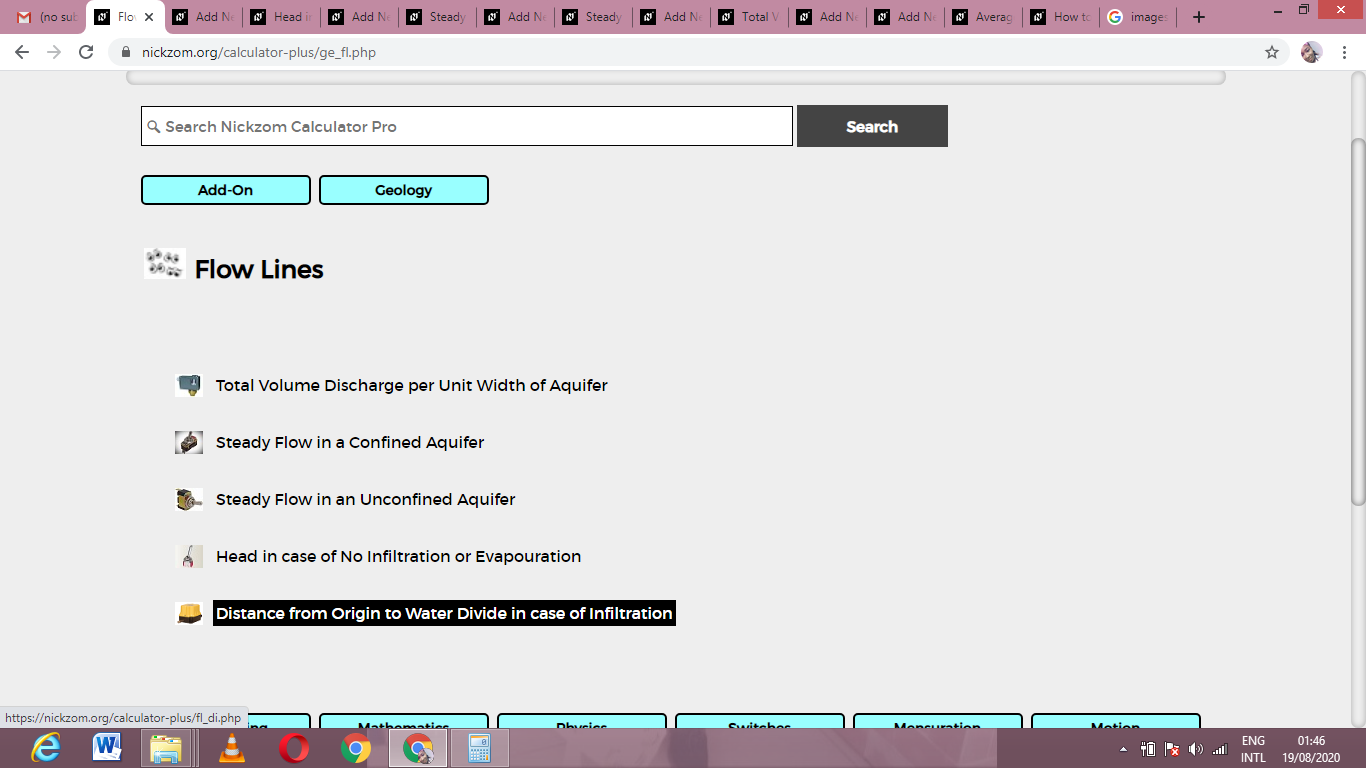

Now, Click on Flow Lines under Geology
Now, Click on Distance from Origin to Water Divide in case of Infiltration under Flow Lines

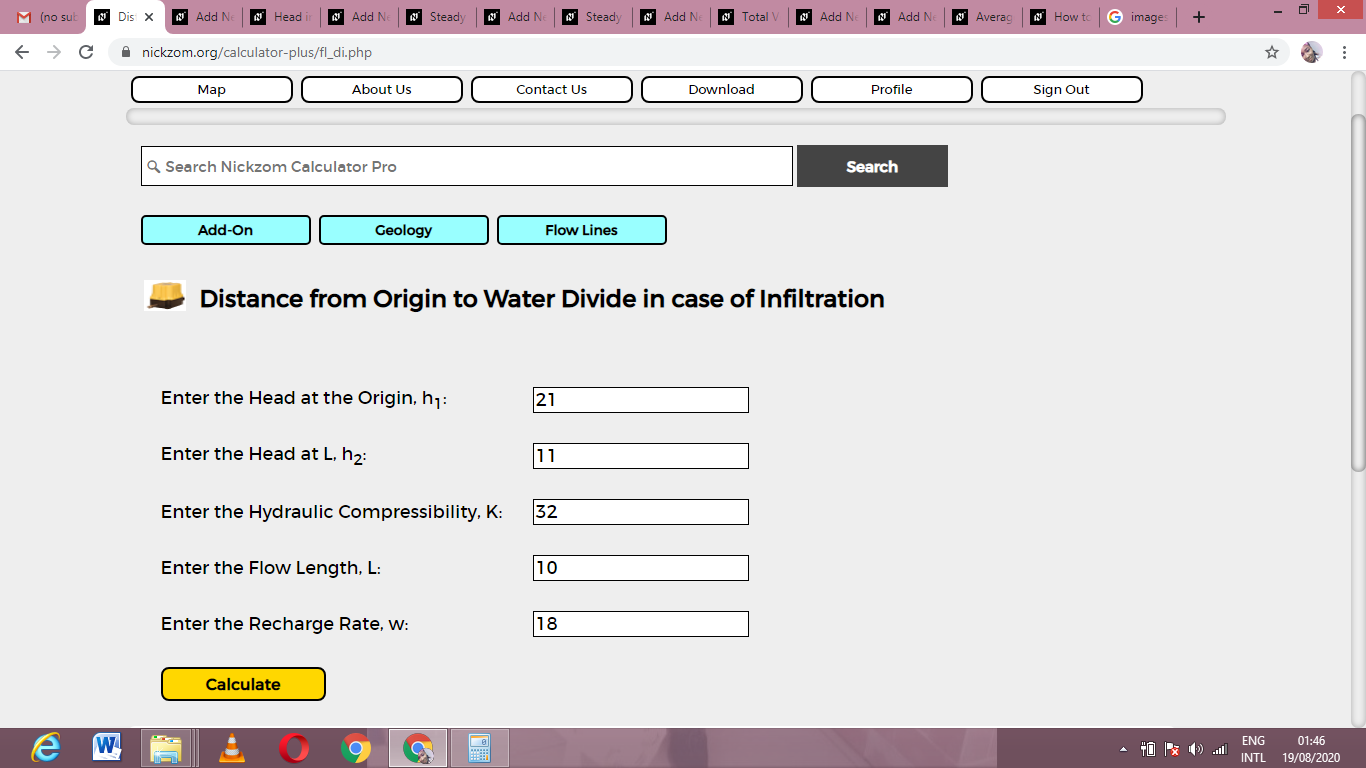

The screenshot below displays the page or activity to enter your values, to get the answer for the distance from origin to water divide in case of infiltration according to the respective parameters which are the Head at the Origin (h1), Head at L (h2), Hydraulic Compressibility (K), Flow Length and Recharge Rate (w).
Now, enter the values appropriately and accordingly for the parameters as required by the Head at the Origin (h1) is 21, Head at L (h2) is 11, Hydraulic Compressibility (K) is 32, Flow Length is 10 and Recharge Rate (w) is 18.
Finally, Click on Calculate

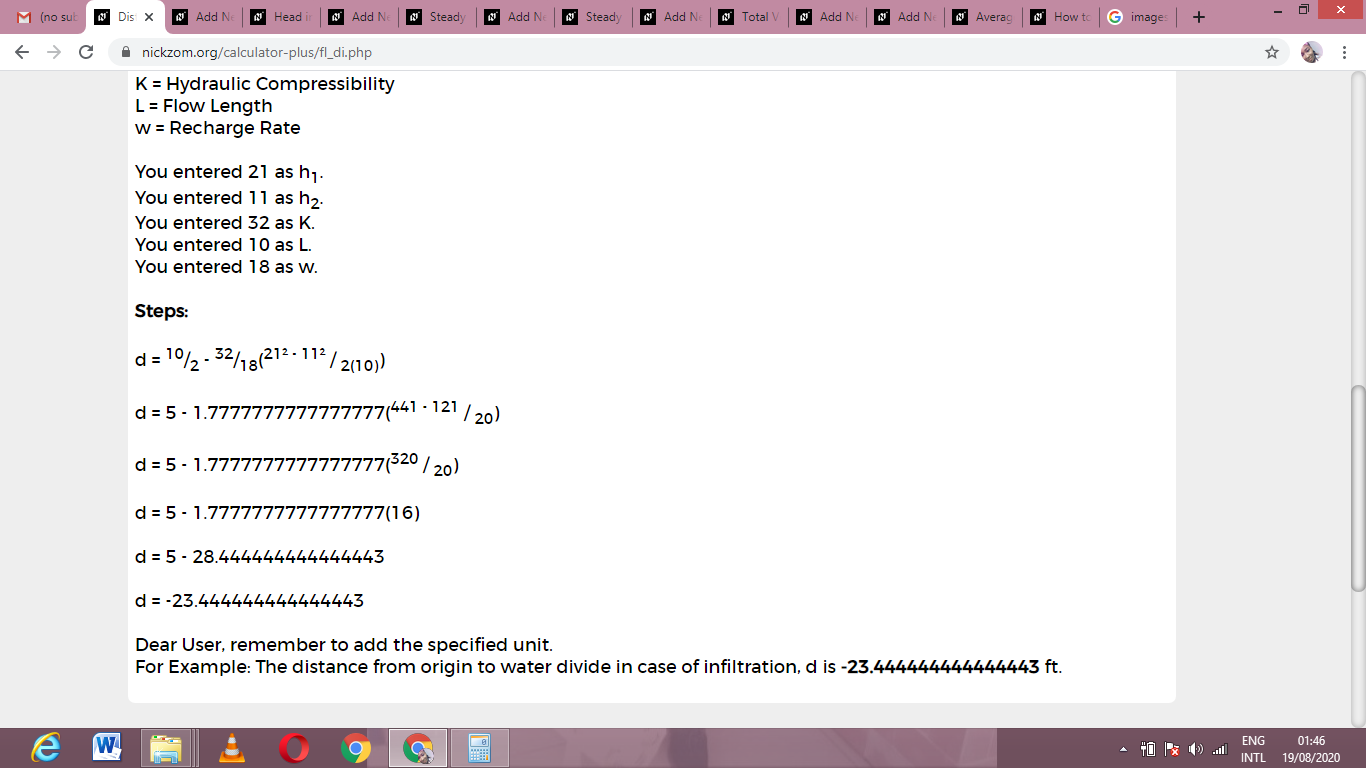

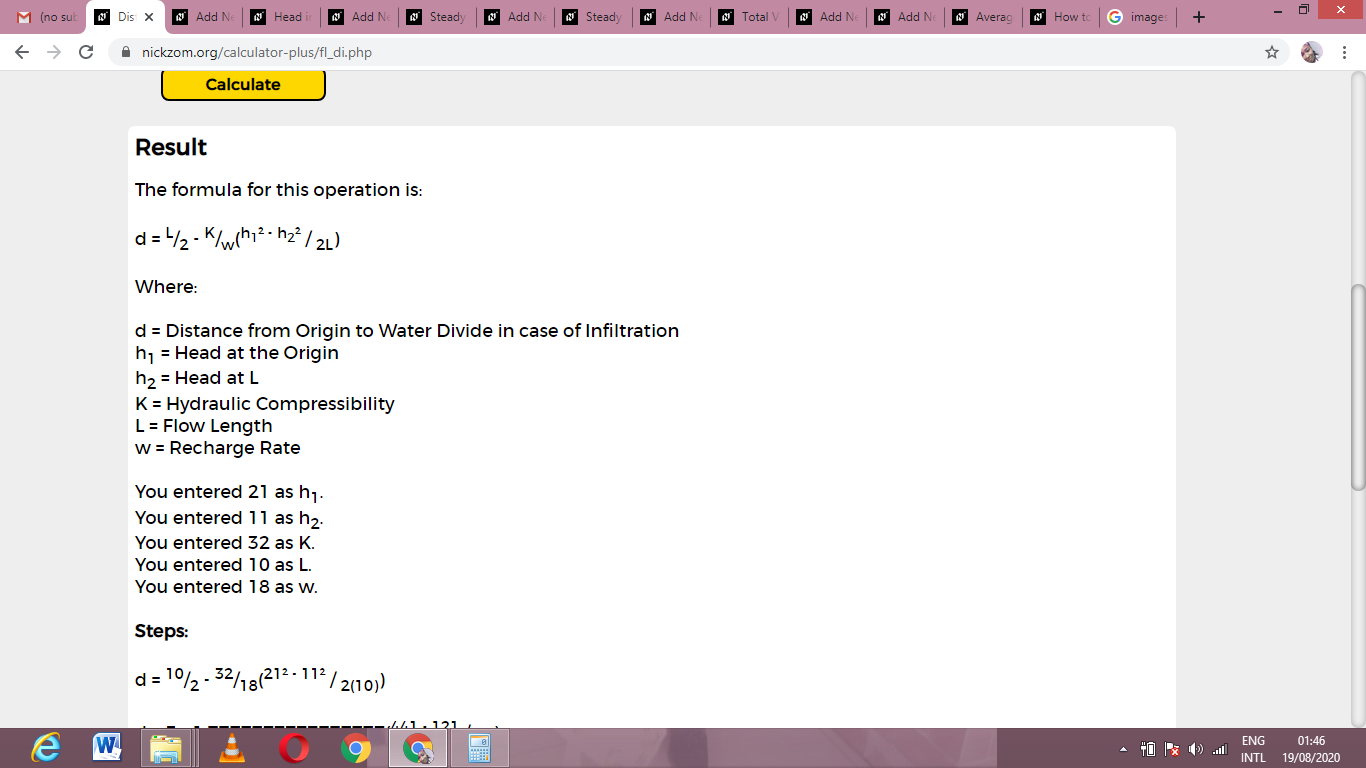

As you can see from the screenshot above, Nickzom Calculator– The Calculator Encyclopedia solves for the distance from origin to water divide in case of infiltration and presents the formula, workings and steps too.
