How to Calculate and Solve for Head at x in case of No Infiltration or Evaporation | Flow Lines
Last Updated on April 8, 2024
The image above represents the head at x in case of no infiltration or evaporation. To calculate head at x in case of no infiltration or evaporation, four essential parameters are Distance from the origin (x), Head at the Origin (h1), Head at L (h2) and Flow Length (L).
The formula for calculating head at x in case of no infiltration or evaporation:
h = √[h1² – (h1² – h2²)x / L]
Where:
h = Head at x in case of No Infiltration or Evapouration
x = Distance from the Origin
h1 = Head at the Origin
h2 = Head at L
L = Flow Length
Let’s solve an example;
Find the head at x in case of no infiltation or evaporation when the distance from the origin is 10, the head at the origin is 15, head at L is 9 and the flow length is 7.
This implies that;
x = Distance from the Origin = 10
h1 = Head at the Origin = 15
h2 = Head at L = 9
L = Flow Length = 7
h = √[h1² – (h1² – h2²)x / L]
That is, h = √[15² – (15² – 9²)10 / 7]
h = √[225 – (225 – 81)10 / 7]
h = √[225 – (144)10 / 7]
Then, h = √[225 – 1440 / 7]
h = √[225 – 205.714]
So, h = √[19.28]
h = 4.39
Therefore, the heat at x in case of no infiltration or evaporation is 4.39.
How to Calculate Head at x in case of No Infiltration or Evaporation Using Nickzom Calculator
Nickzom Calculator – The Calculator Encyclopedia is capable of calculating the head at x in case of no infiltation or evaporation.
To get the answer and workings of the head at x infiltation or evaporation using the Nickzom Calculator – The Calculator Encyclopedia. First, you need to obtain the app.
You can get this app via any of these means:
Web – https://www.nickzom.org/calculator-plus
To get access to the professional version via web, you need to register and subscribe for NGN 2,000 per annum to have utter access to all functionalities.
You can also try the demo version via https://www.nickzom.org/calculator
Android (Paid) – https://play.google.com/store/apps/details?id=org.nickzom.nickzomcalculator
Android (Free) – https://play.google.com/store/apps/details?id=com.nickzom.nickzomcalculator
Apple (Paid) – https://itunes.apple.com/us/app/nickzom-calculator/id1331162702?mt=8
Once, you have obtained the calculator encyclopedia app, proceed to the Calculator Map, then click on Geology under Add-on.
Now, Click on Flow Lines under Geology

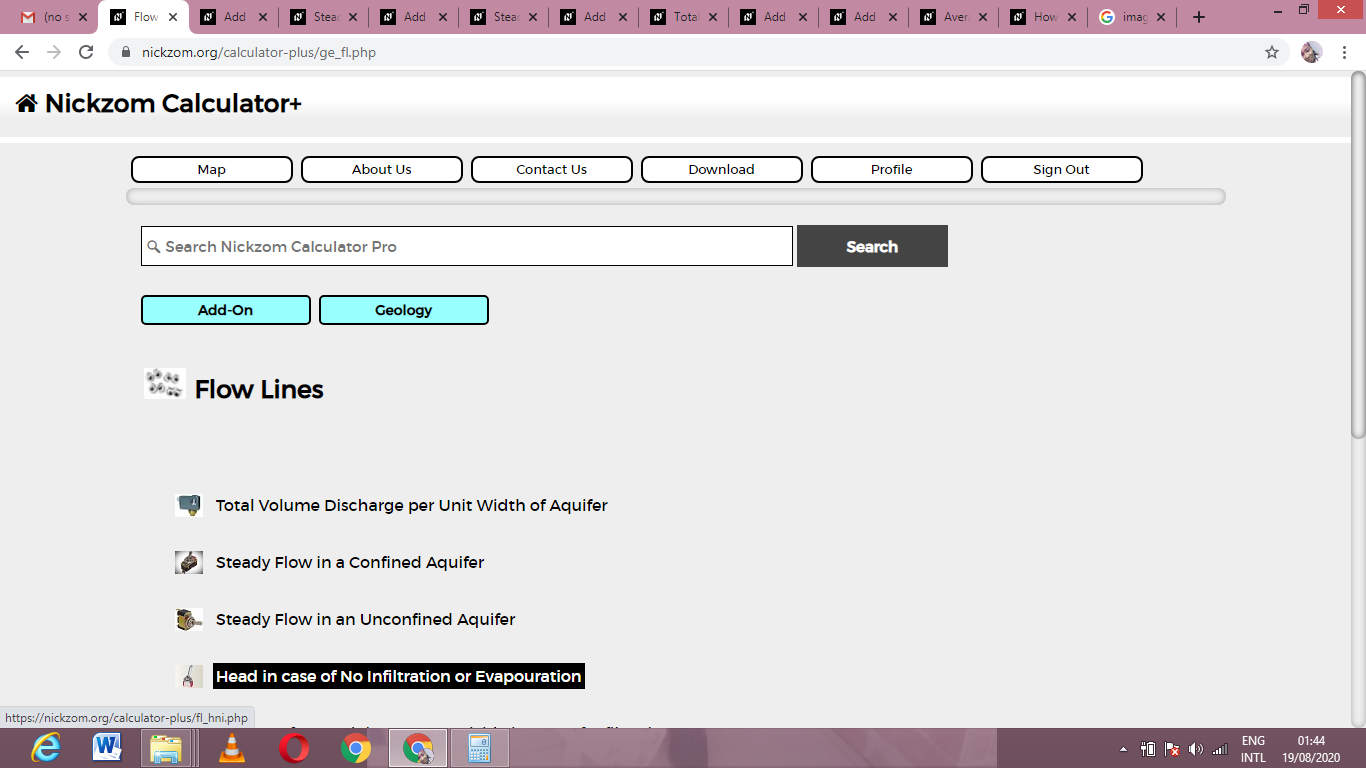

Now, Click on Head at x in case of No Infiltration or Evaporation under Flow Lines

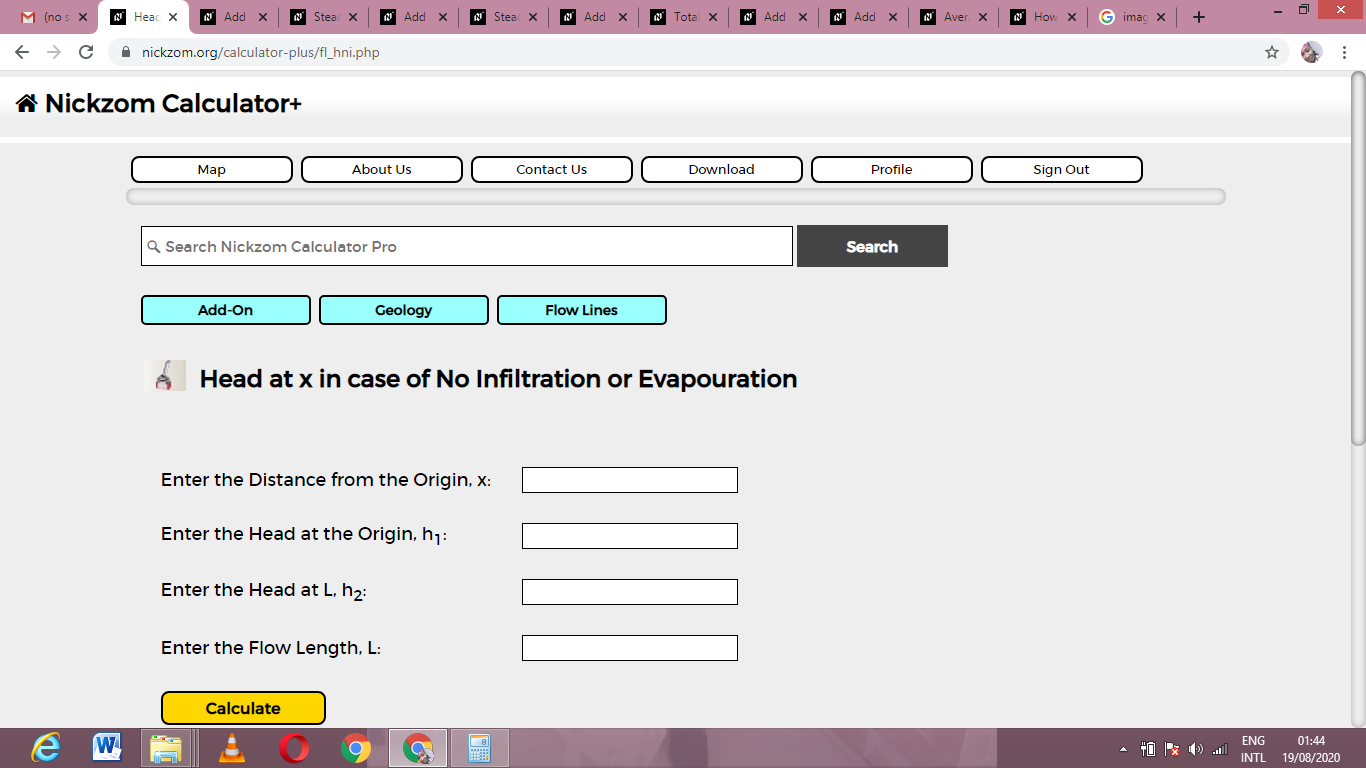

The screenshot below displays the page or activity to enter your values, to get the answer for the head at x in case of no infiltration or evaporation according to the respective parameters which are the Distance from the origin (x), Head at the Origin (h1), Head at L (h2) and Flow Length (L).
Now, enter the values appropriately and accordingly for the parameters as required by the Distance from the origin (x) is 10, Head at the Origin (h1) is 15, Head at L (h2) is 9 and Flow Length (L) is 7.
Finally, Click on Calculate

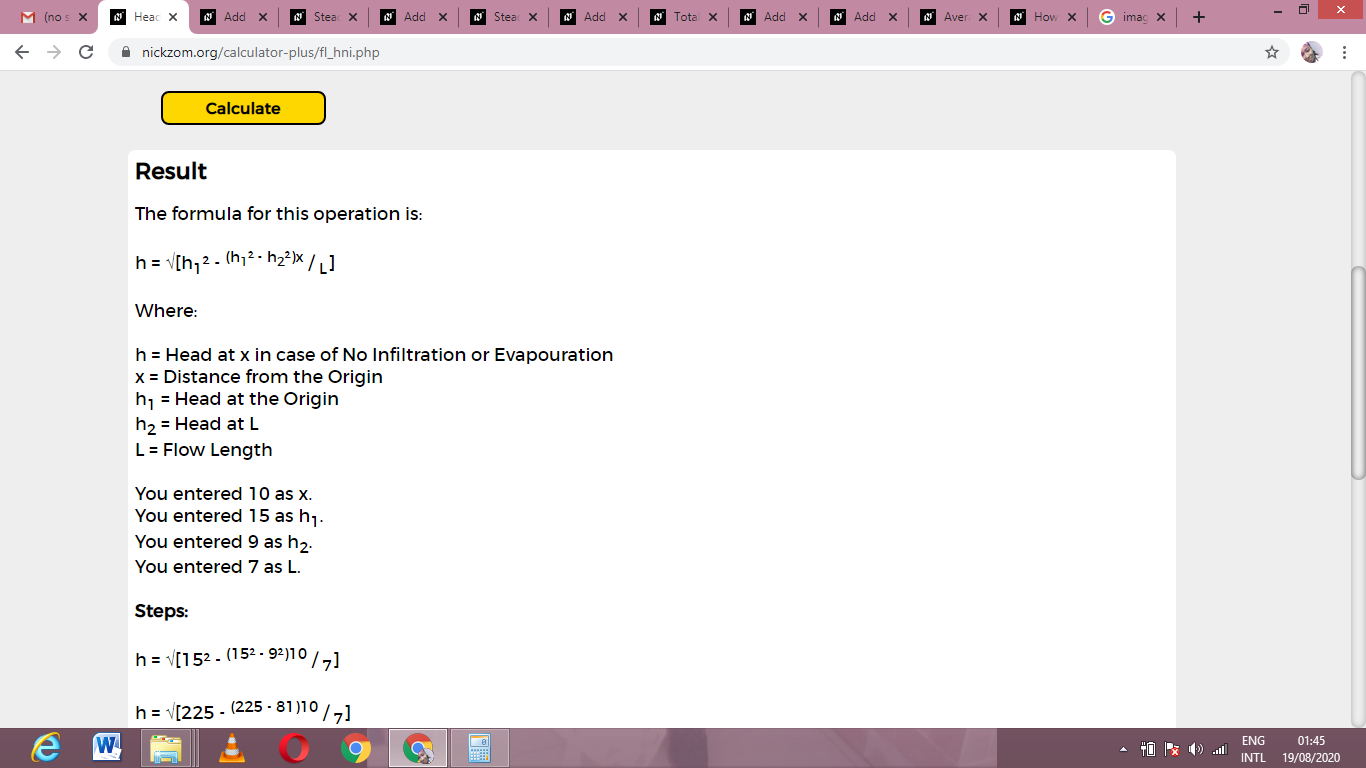

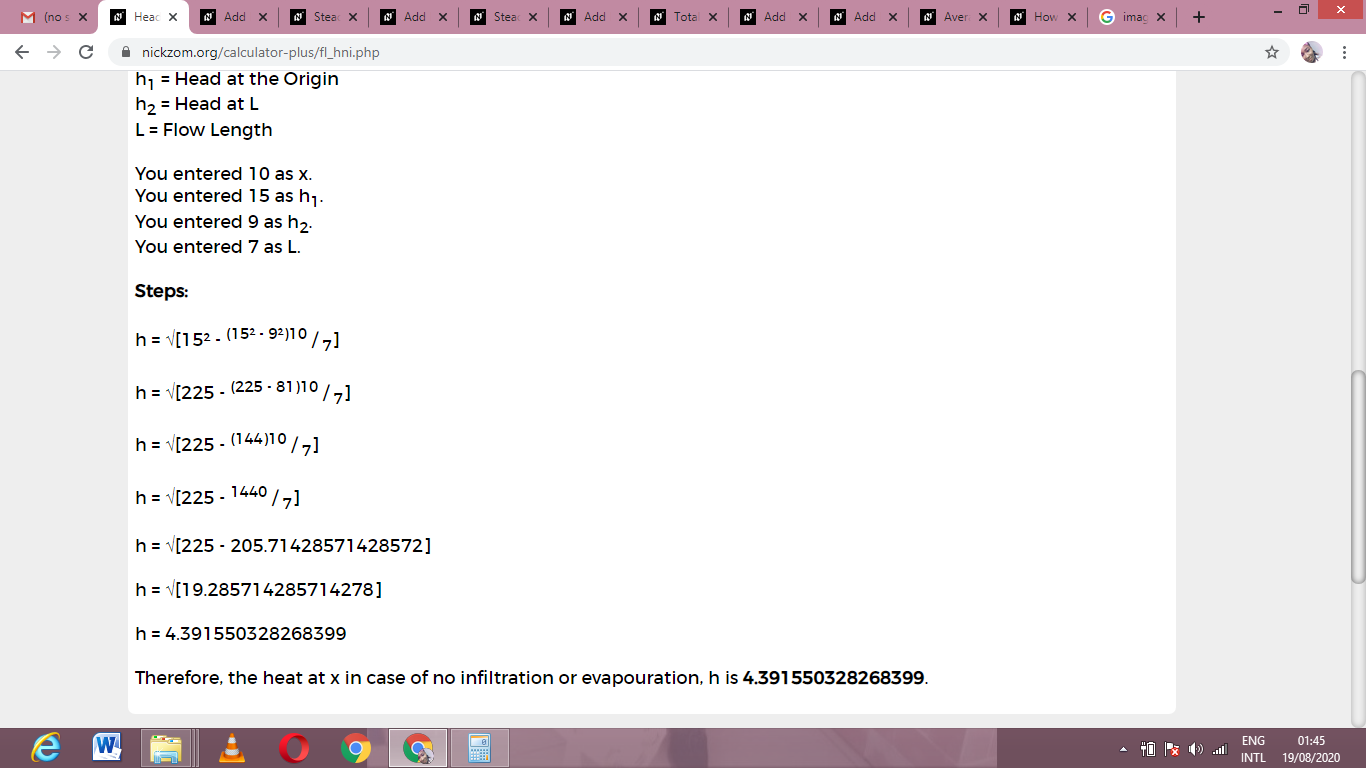

As you can see from the screenshot above, Nickzom Calculator– The Calculator Encyclopedia solves for the head at x in case of no infiltration or evaporation and presents the formula, workings and steps too.
