The image above represents force independent constant.
To compute for force independent constant, two essential parameters are needed and these parameters are Centre to Centre Diameter of Spring (D) and Cross-section Diameter of Spring (d).
The formula for calculating force independent constant:
Kw = 1.60(D/d)-0.14
Where:
Kw = Force Independent Constant
D = Centre to Centre Diameter of Spring
d = Cross-section Diameter of Spring
Let’s solve an example;
Find the force independent constant when the centre to centre diameter of spring is 44 and the cross-section diameter of spring is 11.
This implies that;
D = Centre to Centre Diameter of Spring = 44
d = Cross-section Diameter of Spring = 11
Kw = 1.60(D/d)-0.14
Kw = 1.60(44/11)-0.14
Kw = 1.60(4)-0.14
Kw = 1.60(0.82)
Kw = 1.317
Therefore, the force independent constant is 1.317.
Nickzom Calculator – The Calculator Encyclopedia is capable of calculating the force independent constant.
To get the answer and workings of the force independent constant using the Nickzom Calculator – The Calculator Encyclopedia. First, you need to obtain the app.
You can get this app via any of these means:
Web – https://www.nickzom.org/calculator-plus
To get access to the professional version via web, you need to register and subscribe for NGN 2,000 per annum to have utter access to all functionalities.
You can also try the demo version via https://www.nickzom.org/calculator
Android (Paid) – https://play.google.com/store/apps/details?id=org.nickzom.nickzomcalculator
Android (Free) – https://play.google.com/store/apps/details?id=com.nickzom.nickzomcalculator
Apple (Paid) – https://itunes.apple.com/us/app/nickzom-calculator/id1331162702?mt=8
Once, you have obtained the calculator encyclopedia app, proceed to the Calculator Map, then click on Materials and Metallurgical under Engineering.
Now, Click on Material Selection under Materials and Metallurgical

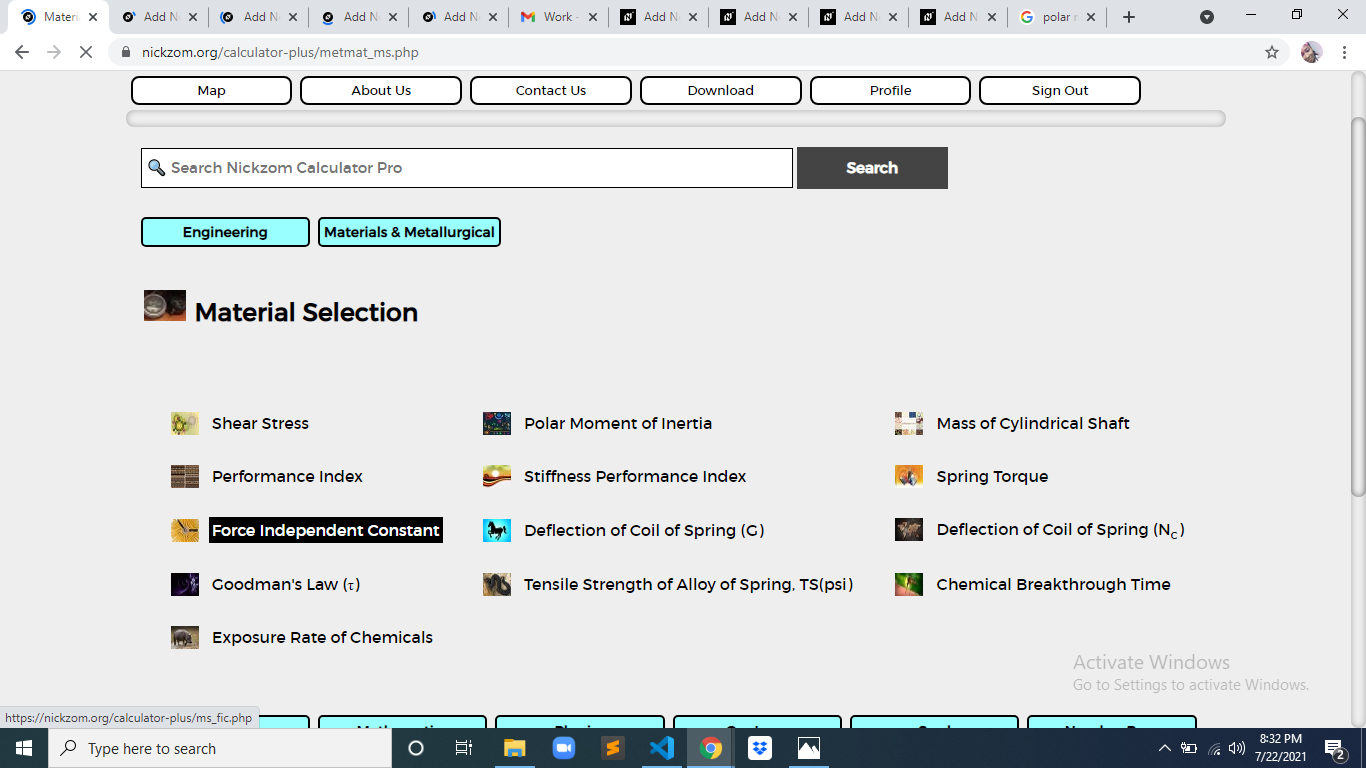

Now, Click on Force Independent Constant under Material Selection

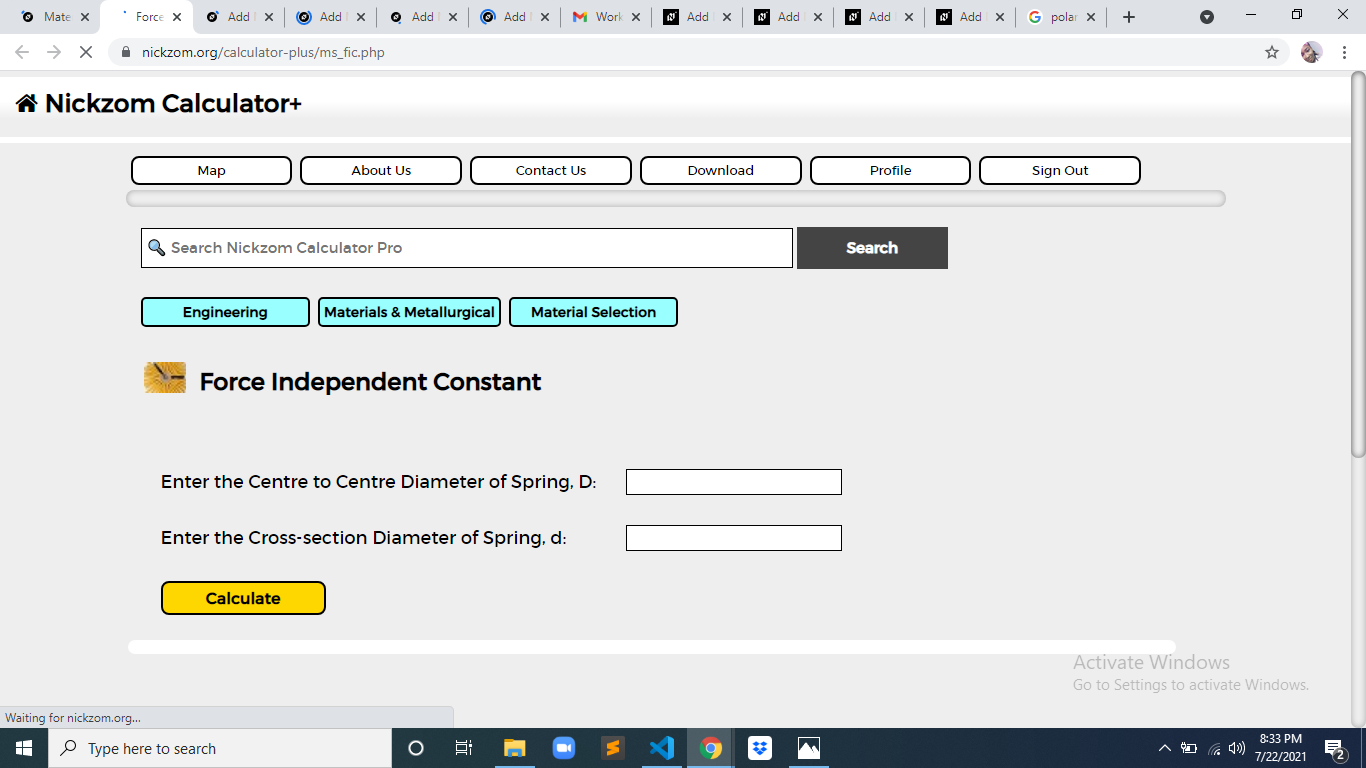

The screenshot below displays the page or activity to enter your values, to get the answer for the force independent constant according to the respective parameter which is the Centre to Centre Diameter of Spring (D) and Cross-section Diameter of Spring (d).
Now, enter the values appropriately and accordingly for the parameters as required by the Centre to Centre Diameter of Spring (D) is 44 and Cross-section Diameter of Spring (d) is 11.
Finally, Click on Calculate

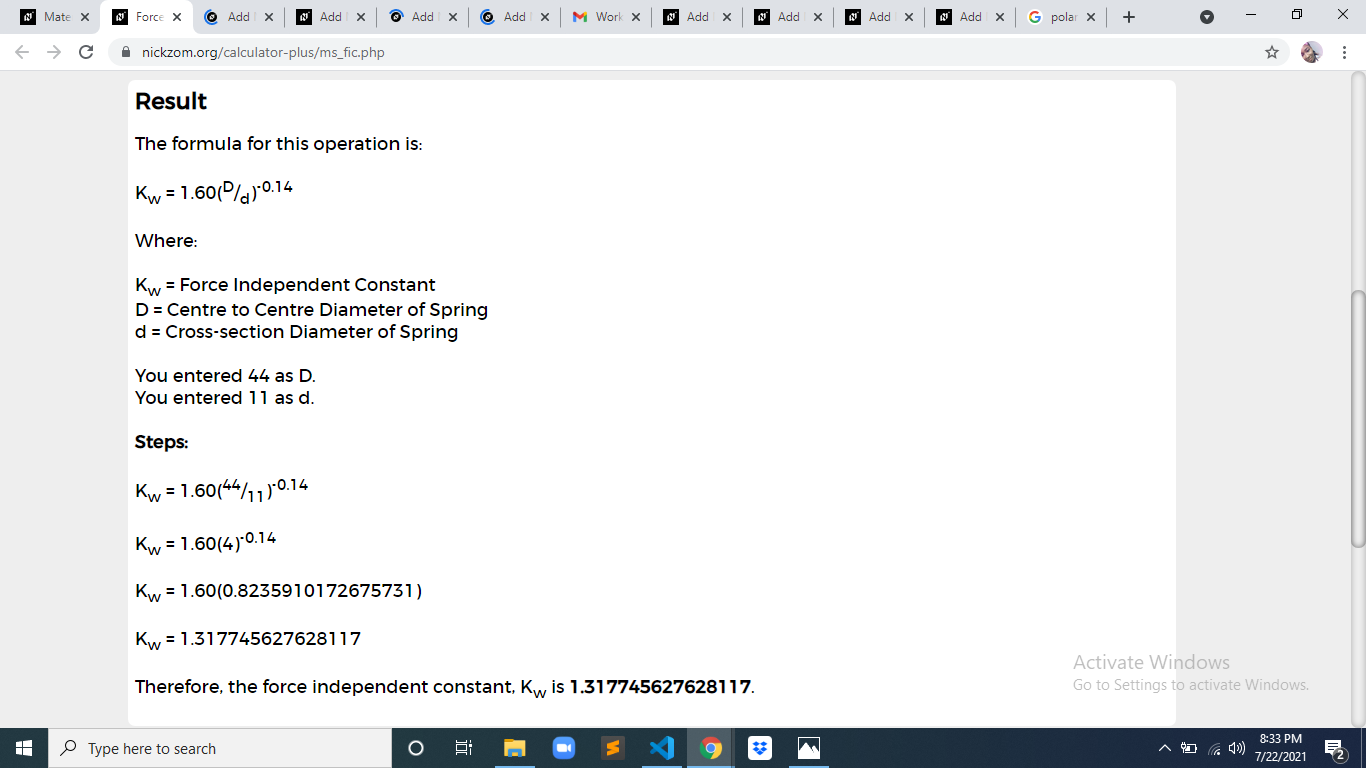

As you can see from the screenshot above, Nickzom Calculator– The Calculator Encyclopedia solves for the force independent constant and presents the formula, workings and steps too.
