How to Calculate and Solve for Shear Strain Rate | Shearing Processes

Last Updated on March 5, 2021

The image above represents shear strain rate.

To compute for shear strain rate, two essential parameters are needed and these parameters are Velocity of Shear Zone (v_s) and Thickness of Shear Zone (t_s).

The formula for calculating shear strain rate:

S^* = ^v_s / _ts

Where:

S^* = Shear Strain Rate
v_s = Velocity of Shear Zone
t_s = Thickness of Shear Zone

Let’s solve an example;
Find the shear strain rate when the velocity of shear zone is 24 and the thickness of shear zone is 12.

This implies that;

v_s = Velocity of Shear Zone = 24
t_s = Thickness of Shear Zone = 12

S^* = ^v_s / _ts
S^* = ²⁴ / ₁₂
S^* = 2

Therefore, the shear strain rate is 2 Hz.

Calculating the Velocity of Shear Zone when the Shear Strain Rate and the Thickness of Shear Zone is Given.

v_s = S^*x t_s

Where;

v_s = Velocity of Shear Zone
S^* = Shear Strain Rate
t_s = Thickness of Shear Zone

Let’s solve an example;
Find the velocity of shear zone when the shear strain rate is 10 and the thickness of shear zone is 14.

This implies that;

S^* = Shear Strain Rate = 10
t_s = Thickness of Shear Zone = 14

v_s = S^*x t_s
v_s = 10 x 14
v_s = 140

Therefore, the velocity of shear zone is 140.

Calculating the Thickness of Shear Zone when the Shear Strain Rate and the Velocity of Shear Zone is Given.

t_s  = ^v_s / _S^*

Where;

t_s = Thickness of Shear Zone
S^* = Shear Strain Rate
v_s = Velocity of Shear Zone

Let’s solve an example;
Find the thickness of shear zone when the shear strain rate is 20 and the velocity of shear zone is 180.

This implies that;

S^* = Shear Strain Rate = 20
v_s = Velocity of Shear Zone = 180

t_s  = ^v_s / _S^*
t_s  = ¹⁸⁰ / ₂₀
t_s  = 9

Therefore, the thickness of shear zone is 9.

Nickzom Calculator – The Calculator Encyclopedia is capable of calculating the shear strain rate.

To get the answer and workings of the shear strain rate using the Nickzom Calculator – The Calculator Encyclopedia. First, you need to obtain the app.

You can get this app via any of these means:

Web – https://www.nickzom.org/calculator-plus

To get access to the professional version via web, you need to register and subscribe for NGN 2,000 per annum to have utter access to all functionalities.
You can also try the demo version via https://www.nickzom.org/calculator

Android (Paid) – https://play.google.com/store/apps/details?id=org.nickzom.nickzomcalculator
Android (Free) – https://play.google.com/store/apps/details?id=com.nickzom.nickzomcalculator
Apple (Paid) – https://itunes.apple.com/us/app/nickzom-calculator/id1331162702?mt=8
Once, you have obtained the calculator encyclopedia app, proceed to the Calculator Map, then click on Materials and Metallurgical under Engineering.

Now, Click on Metal Forming Processes under Materials and Metallurgical

Now, Click on Shearing Processes under Metal Forming Processes

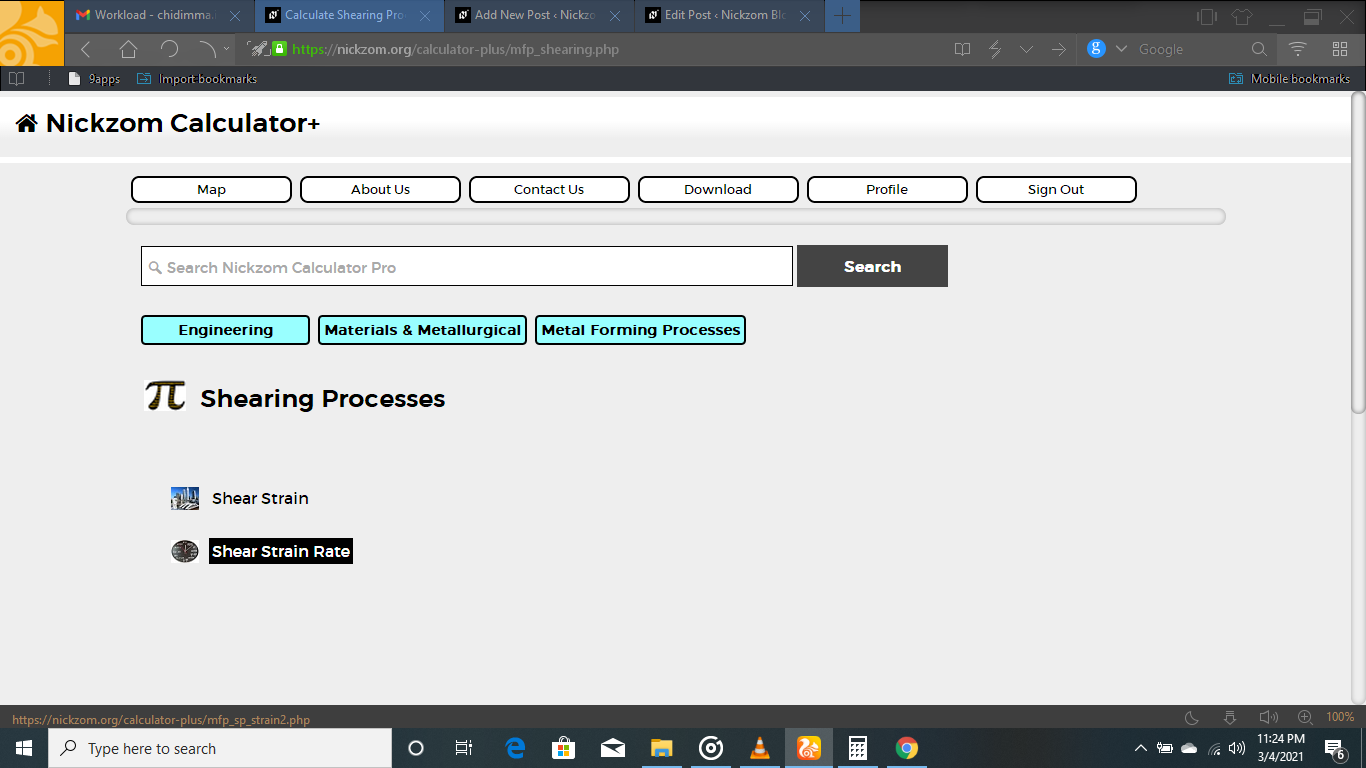

Now, Click on Shear Strain Rate under Shearing Processes

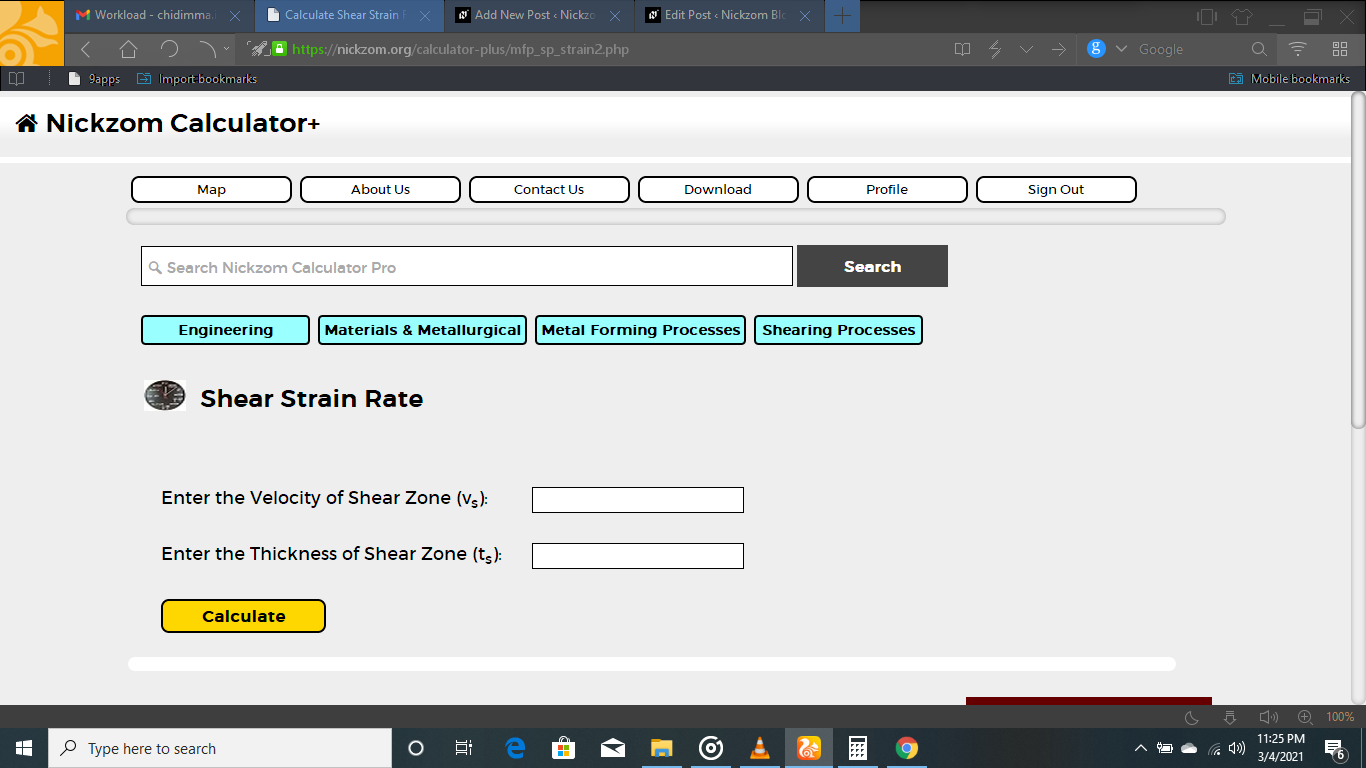

The screenshot below displays the page or activity to enter your values, to get the answer for the shear strain rate according to the respective parameters which is the Velocity of Shear Zone (v_s) and Thickness of Shear Zone (t_s).

Now, enter the values appropriately and accordingly for the parameters as required by the Velocity of Shear Zone (v_s) is 24 and Thickness of Shear Zone (t_s) is 12.

Finally, Click on Calculate

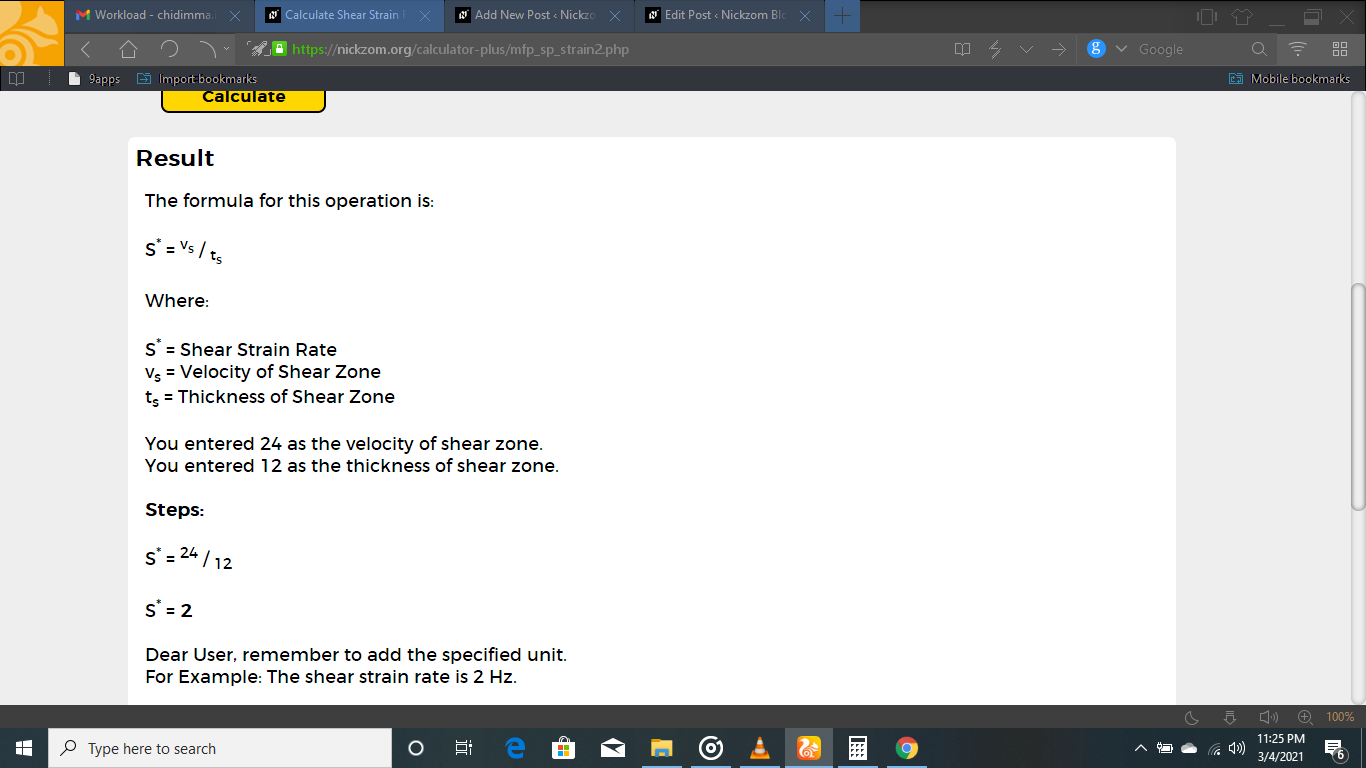

As you can see from the screenshot above, Nickzom Calculator– The Calculator Encyclopedia solves for the shear strain rate and presents the formula, workings and steps too.
