The image above represents ballast circuit output voltage under no load condition. To calculate ballast circuit output voltage under no load condition, three essential parameters are needed and these parameters are the Resistance of the Unstrained Gauge (R_g), Ballast Resistance (R_b) and Input Supply Voltage (v_i).

The formula to calculate ballast circuit output voltage under no load condition:

v_o = (^R_g / _{Rg + Rb})v_i

Where:

v_o = Ballast Circuit Output Voltage
R_g = Resistance of the Unstrained gauge
R_b = Ballast Resistance
v_i = Input Supply Voltage

Let’s solve an example;
Find the ballast circuit output voltage when the resistance of the unstrained guage is 12, the ballast resistance is 10 and the input supply voltage is 8.

This implies that;

R_g = Resistance of the Unstrained gauge = 12
R_b = Ballast Resistance = 10
v_i = Input Supply Voltage = 8

v_o = (^R_g / _{Rg + Rb})v_i
That is, v_o = (¹² / _{12 + 10}) x 8
v_o = (¹² / ₂₂) x 8
So, v_o = 0.54 x 8
v_o = 4.36

Therefore, the ballast circuit output voltage is 4.36 V.

Read more: How to Calculate and Solve for Ballast Output Voltage of Circuit under Strained Condition | Electrical Strain Gauges

How to Calculate Ballast Circuit Output Voltage under No Load Condition With Nickzom Calculator

Nickzom Calculator – The Calculator Encyclopedia is capable of calculating the ballast circuit output voltage.

To get the answer and workings of the ballast circuit output voltage using the Nickzom Calculator – The Calculator Encyclopedia. First, you need to obtain the app.

You can get this app via any of these means:

Web – https://www.nickzom.org/calculator-plus

To get access to the professional version via web, you need to register and subscribe for NGN 2,000 per annum to have utter access to all functionalities.
You can also try the demo version via https://www.nickzom.org/calculator

Android (Paid) – https://play.google.com/store/apps/details?id=org.nickzom.nickzomcalculator
Android (Free) – https://play.google.com/store/apps/details?id=com.nickzom.nickzomcalculator
Apple (Paid) – https://itunes.apple.com/us/app/nickzom-calculator/id1331162702?mt=8
Once, you have obtained the calculator encyclopedia app, proceed to the Calculator Map, then click on Materials and Metallurgical under Engineering.

Now, Click on instrumentation under Materials and Metallurgical

Then, Click on Electrical Strain Guages under Instrumentation

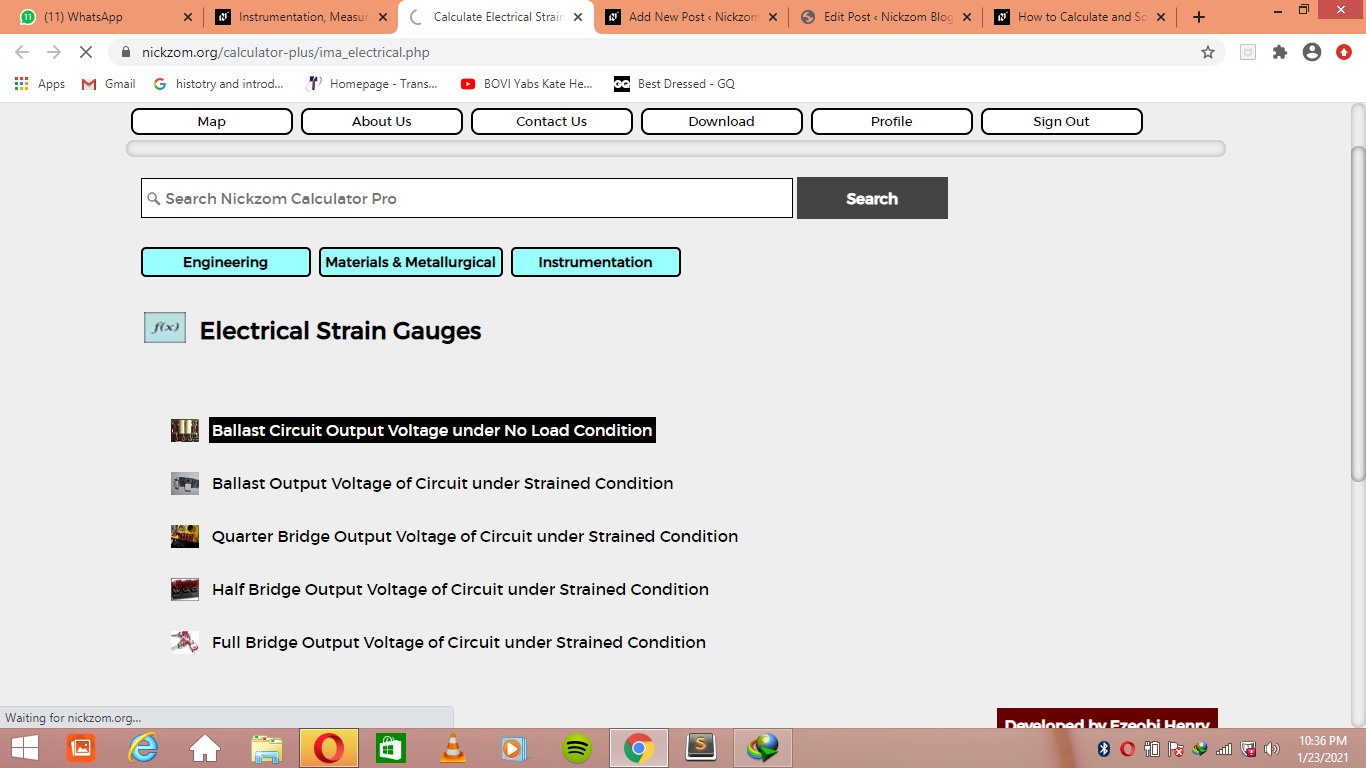

Now, Click on Ballast Circuit Output Voltage under No Load Condition under Electrical Strain Guages

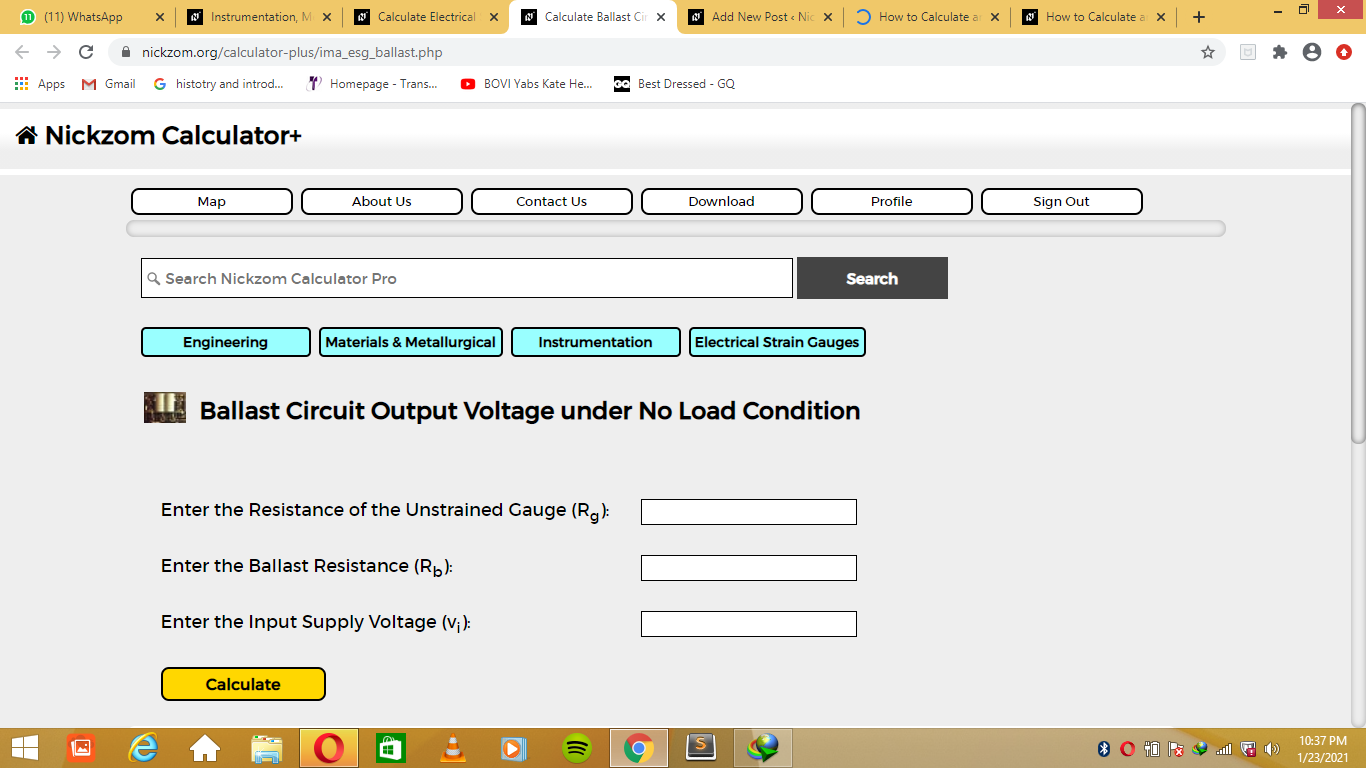

The screenshot below displays the page or activity to enter your values, to get the answer for the ballast circuit output voltage under no load condition according to the respective parameters which is the Resistance of the Unstrained Gauge (R_g), Ballast Resistance (R_b) and Input Supply Voltage (v_i).
