How to Calculate and Solve for Volume of the cut on the land | Land Development

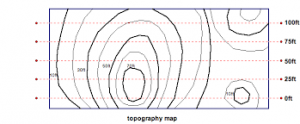

The image above represents volume of the cut on the land. To calculate volume of the cut on the land, three essential parameters are needed and these parameters are Grid spacing (L), Cut on grid corners (Σc), Fill on the grid corners (Σf).

The formula for calculating volume of the cut on the land:

Vc = L²(Σc)² / 4(Σc + Σf)

Where:

Vc = Volume of the Cut on the Land
L = Grid Spacing
Ec = Cut on Grid Corners
Ef = Fill on Grid Corners

Let’s solve an example;
Find the volume of the cut on the land when the grid spacing is 10, the cut on grid corners is 14 and the fill on grid corners is 8.

This implies that;

L = Grid Spacing = 10
Ec = Cut on Grid Corners = 14
Ef = Fill on Grid Corners = 8

Vc = L²(Σc)² / 4(Σc + Σf)
Vc = (10)²(14)² / 4(14 + 8)
So, Vc = (100) . (196) / 4(22)
Vc = 19600 / 88
Vc = 222.7

Therefore, the volume of the cut on the land is 222.7.

Read more: How to Calculate and Solve for Volume of the fill on the Land | Land Development

How to Calculate Volume of the cut on the land Using Nickzom Calculator

Nickzom Calculator – The Calculator Encyclopedia is capable of calculating the volume of the cut on the land.

To get the answer and workings of the volume of the cut on the land using the Nickzom Calculator – The Calculator Encyclopedia. First, you need to obtain the app.

You can get this app via any of these means:

Master Every Calculation Instantly

Unlock solutions for every math, physics, engineering, and chemistry problem with step-by-step clarity. No internet required. Just knowledge at your fingertips, anytime, anywhere.

Web – https://www.nickzom.org/calculator-plus

To get access to the professional version via web, you need to register and subscribe for NGN 2,000 per annum to have utter access to all functionalities.
You can also try the demo version via https://www.nickzom.org/calculator

Android (Paid) – https://play.google.com/store/apps/details?id=org.nickzom.nickzomcalculator
Android (Free) – https://play.google.com/store/apps/details?id=com.nickzom.nickzomcalculator
Apple (Paid) – https://itunes.apple.com/us/app/nickzom-calculator/id1331162702?mt=8

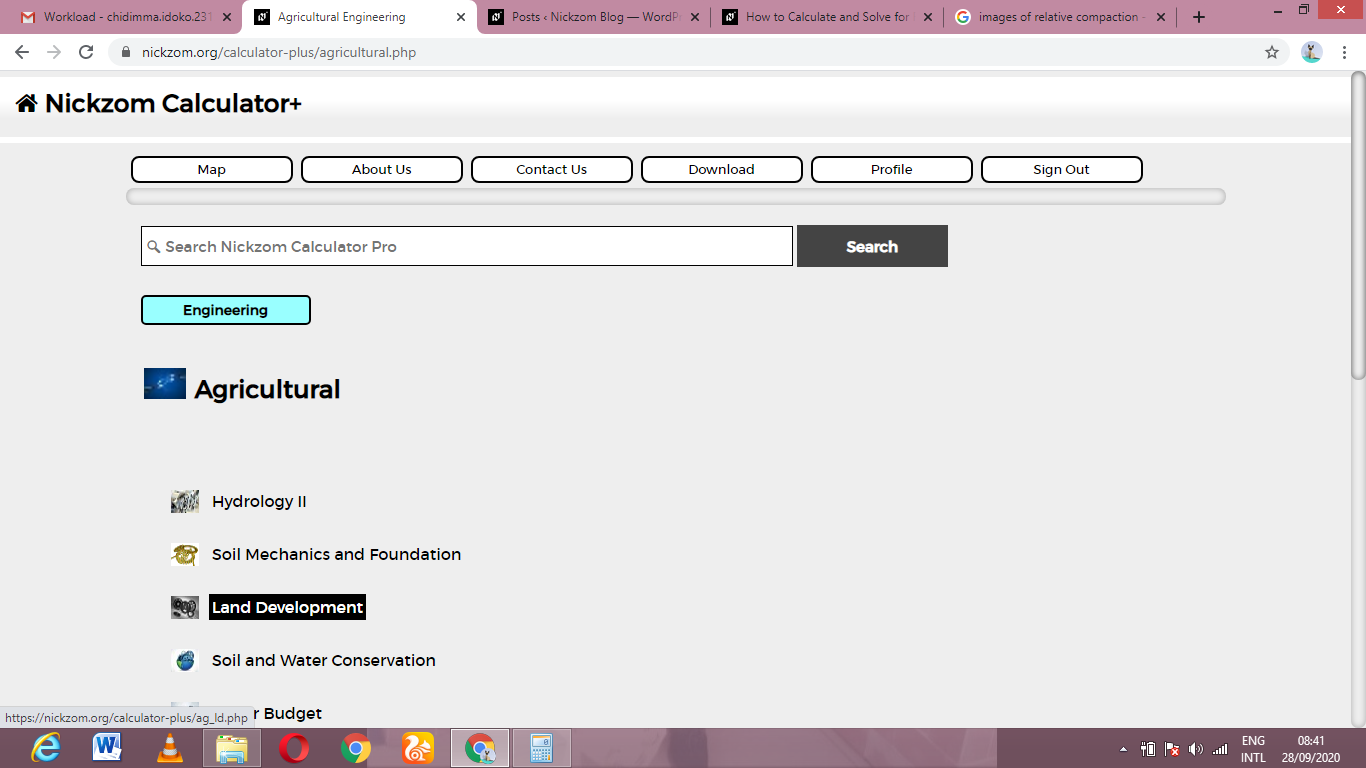

Once, you have obtained the calculator encyclopedia app, proceed to the Calculator Map, then click on Agricultural under Engineering.

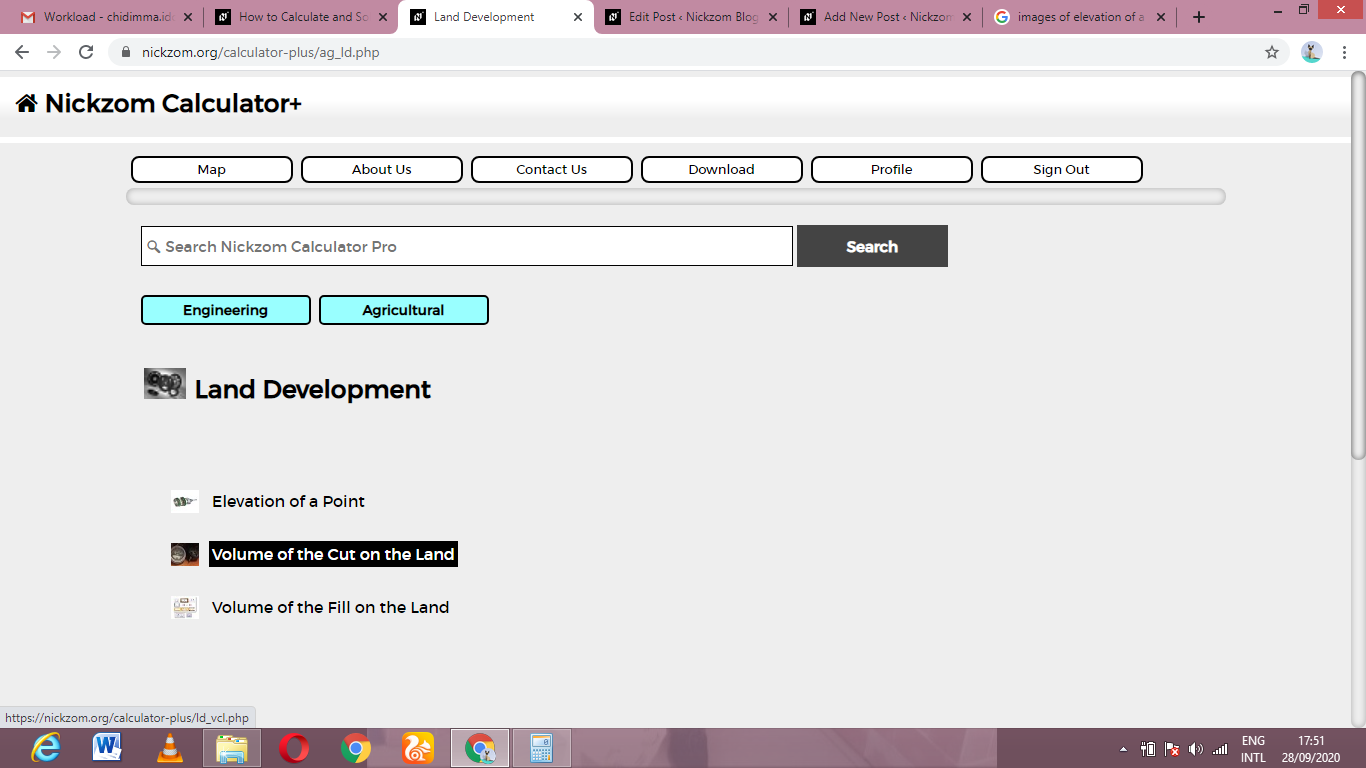

Now, Click on Land Development under Agricultural

Now, Click on Volume of the Cut on the Land under Land Development

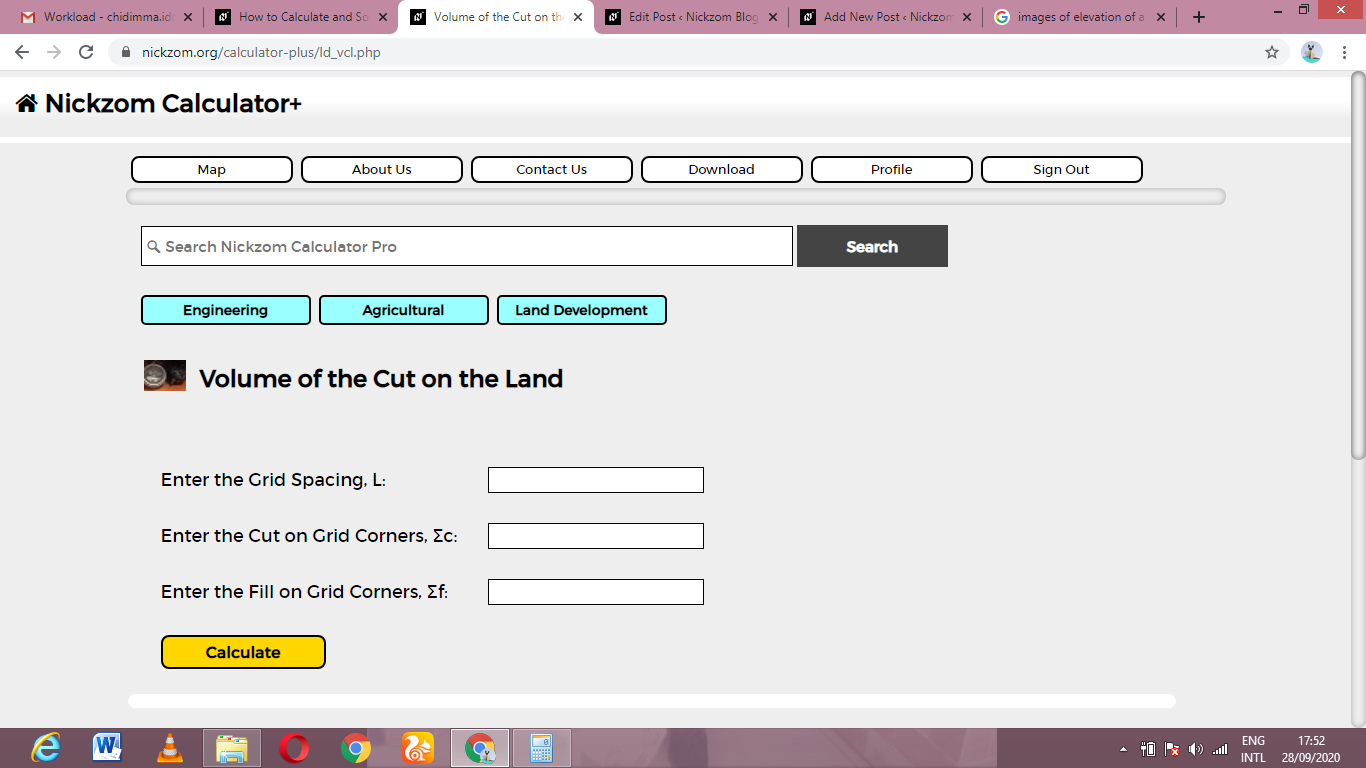

The screenshot below displays the page or activity to enter your values, to get the answer for the volume of the cut on the land according to the respective parameters which is the Grid spacing (L), Cut on grid corners (Σc), Fill on the grid corners (Σf).

How to Calculate and Solve for Volume of the cut on the land | Land Development

Now, enter the values appropriately and accordingly for the parameters as required by the Grid spacing (L) is 10, Cut on grid corners (Σc) is 14, Fill on the grid corners (Σf) is 8.

How to Calculate and Solve for Volume of the cut on the land | Land Development

Finally, Click on Calculate

How to Calculate and Solve for Volume of the cut on the land | Land Development

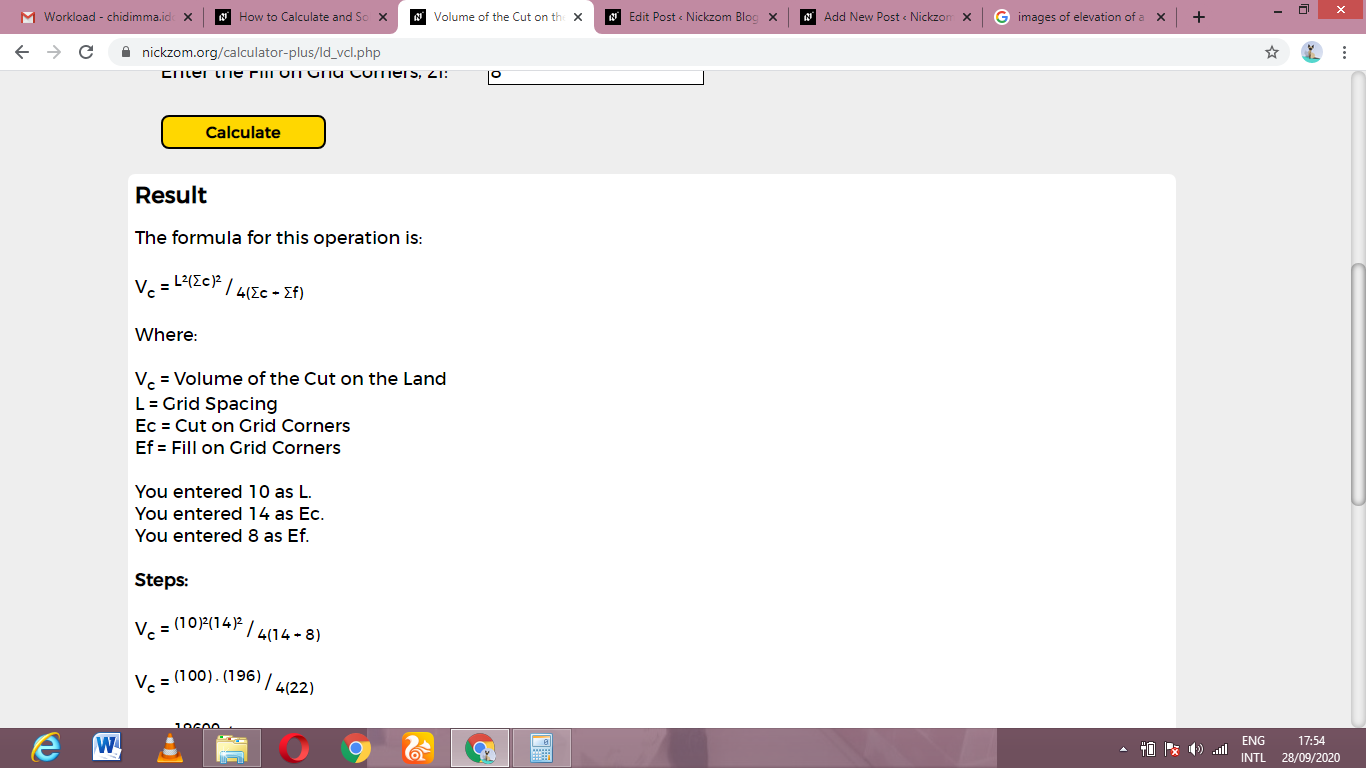

As you can see from the screenshot above, Nickzom Calculator– The Calculator Encyclopedia solves for the volume of the cut on the land and presents the formula, workings and steps too.
